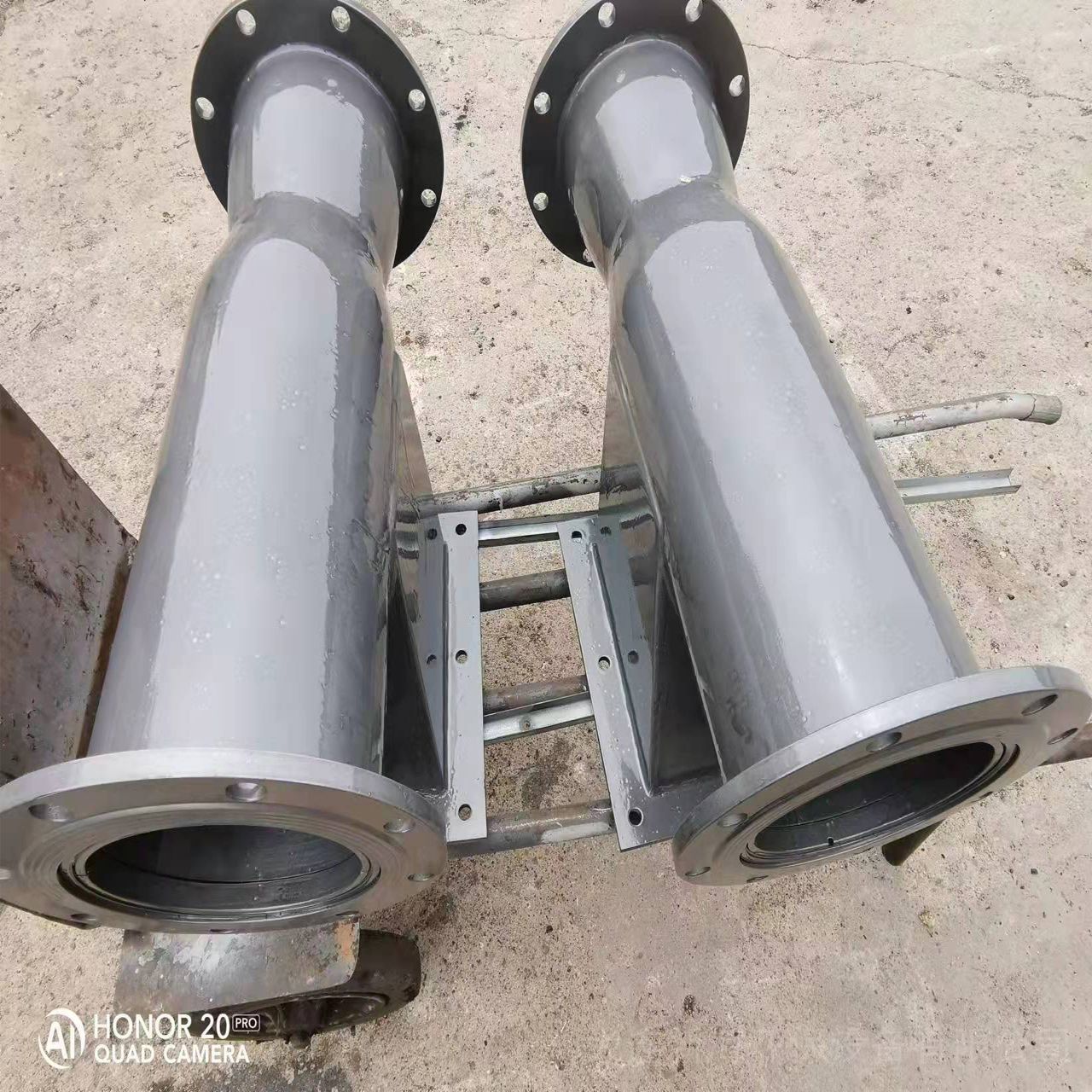

Spray feeder Spray feeder Stainless steel feeder Pneumatic conveying

Jet feeders, also known as Venturi jet compensators, produce adsorption and cause air flow when gas blows through a barrier and the pressure near the port above the leeward side of the barrier is relatively low. It reduces the gas flow from coarse to fine to accelerate the gas flow rate, so that the gas forms a vacuum area at the back of the Venturi tube outlet. When this vacuum zone is close to the workpiece, it will have a certain adsorption effect on the workpiece. High-pressure air enters through the venturi inlet and a small portion exits through a nozzle with a small cross-section. With the gradual reduction of the cross section, the pressure of the compressed air decreases and the flow rate increases. At this time, a vacuum degree is generated in the inlet of the adsorption chamber, causing the surrounding air to be sucked into the Venturi tube. With the compressed air flowing into the diffusion chamber, the flow rate of the gas is reduced, and then the airflow oscillation is reduced by the muffler.


Principle:

When gas blows through a barrier, the pressure near the port above the leeward side of the barrier is relatively low, resulting in adsorption and flow of air. The principle of Venturi tube is actually very simple, it is to change the gas flow from coarse to fine, so as to speed up the gas flow rate, so that the gas forms a vacuum zone at the back of Venturi tube outlet. When this vacuum zone is close to the workpiece, it will have a certain adsorption effect on the workpiece. High-pressure air enters through the venturi inlet and a small portion exits through a nozzle with a small cross-section. With the gradual reduction of the cross section, the pressure of the compressed air decreases and the flow rate increases. At this time, a vacuum degree is generated in the inlet of the adsorption chamber, causing the surrounding air to be sucked into the Venturi tube. With the compressed air flowing into the diffusion chamber, the flow rate of the gas is reduced, and then the airflow oscillation is reduced by the muffler.

Applications:

The injectors used in the ash and slag removal system of power plants usually use water as the conveying medium, that is, hydraulic injectors. Also known as hydraulic air extractors. Hydraulic ejector is used for hydraulic ash removal system, conveying ash slurry to ash pump front pool or dewatering bin. Its output is 30-50m3/h. nbsp;

Pros:
1)No moving parts, simple structure and small size;
2)The material receiving port is in the high negative pressure area, so the upper hopper can be in an open state, and the material can be continuously sucked;
3)After the diffusion pipe becomes positive pressure, dust removal equipment configuration is relatively simple;





Outline size table:

Caliber size type		GR-15(30)	GR-50	GR-70	GR-120	GR220	GR-300	GR-400	GR-600	GR-800
50A	L	450
	I	165
	j	125
	n-φd1	4-φ19
65A	L	450	500	800
	I	185	185	185
	j	145	145	145
	n-φd1	4-φ19	4-φ19	4-φ19
80A	L	450	500	800
	I	220	200	200
	j	160	160	160
	n-φd1	8-φ19	8-φ19	8-φ19
90A	L	450	500	800	850
	I	195	195	195	195
	j	160	160	160	160
	n-φd1	8-φ19	8-φ19	8-φ19	8-φ19
100A	L		500	800	850
	I		220	220	220
	j		180	180	180
	n-φd1		8-φ19	8-φ19	8-φ19
125A	L			800	850	900	900
	I			250	250	250	250
	j			210	210	210	210
	n-φd1			8-φ23	8-φ23	8-φ23	8-φ23
150A	L			800	850	900	900	950	1200
	I			285	285	285	285	285	285
	j			240	240	240	240	240	240
	n-φd1			8-φ23	8-φ23	8-φ23	8-φ23	8-φ23	8-φ23
175A	L				850	900	900	950	1200	1300
	I				315	315	315	315	315	315
	j				270	270	270	270	270	270
	n-φd1				8-φ23	8-φ23	8-φ23	8-φ23	8-φ23	8-φ23
200A	L				850	900	900	950	1200	1300
	I				340	340	340	340	340	340
	j				295	295	295	295	295	295
	n-φd1				8-φ23	8-φ23	8-φ23	8-φ23	8-φ23	8-φ23
225A	L				850	900	900	950	1200	1300
	I				370	370	370	370	370	370
	j				325	325	325	325	325	325
	n-φd1				8-φ23	8-φ23	8-φ23	8-φ23	8-φ23	8-φ23
250A	L					900	900	950	1200	1300
	I					395	395	395	395	395
	j					350	350	350	350	350
	n-φd1					8-φ23	8-φ23	8-φ23	8-φ23	12-φ23
300A	L								1200	1300
